4*150W 18V mono solar panel + 20A MPPT charge controller 600W solar system

100 % of buyers enjoyed this product!
In stock
TODAY'S DEAL Ends in: 04:36:18
Price: 35948.00 ฿ Sale Price: 33072.00 ฿
45 days Money back
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery
On-time Delivery
Guarantees: On-time Delivery 60 days

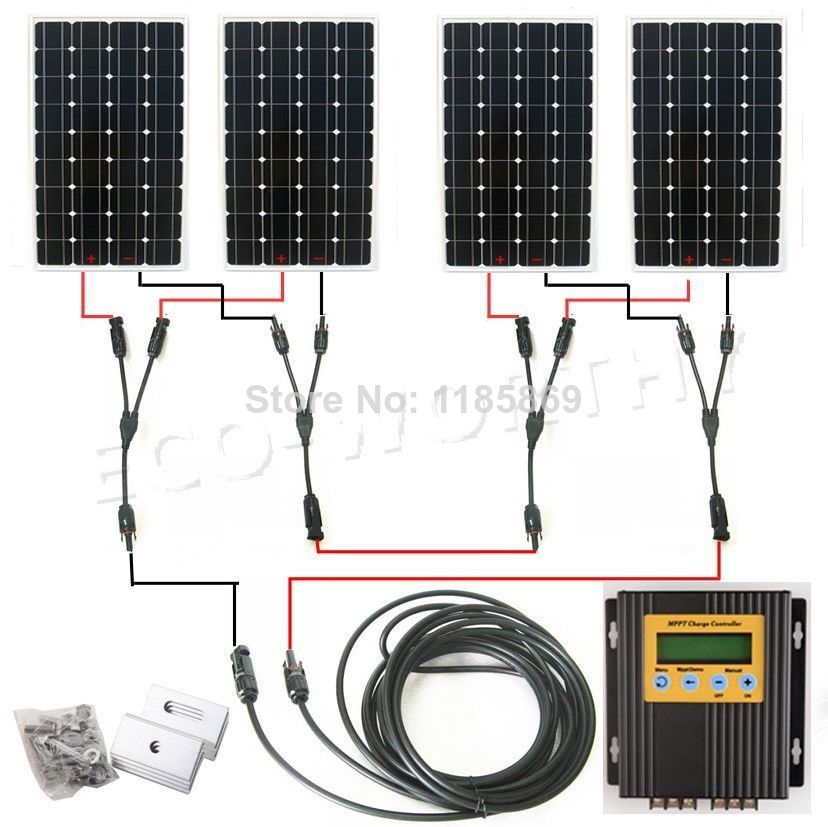

Package included

1. 4 pcs 150W mono solar panel with MC4 connector

2. 1 pcs 20A MPPT solar charge controller

3. 4 set Z-4 style mounting kit

4. 1 pcs MC4 with 5 meter 4mm⊃2; extension solar cable(red and black) 5. 2 pair Y MC4 solar cable connector Product Detail: 150W mono solar panel

Related power 150W
Voc 22.41V
Vop 17.9V
Short circuit current (Isc) 9.29A
Working current (Iop) 8.38A
Output Tolerance ±3%
Temperate coefficient of Isc (010+/- 0.01 )%/ degree
Temperate coefficient of Voc – (0.38 +/-0.01 )%/ degree
Temperate coefficient of power Voc -0.47%/degree
Temperature range -40degree to +80degree
Frame Heavy duty aluminum
Kind of connection waterproof junction box, can be customized
Guarantee of power 90% with in 10 years 80% with in 25 years
Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage 12V
Size 1455x665x35mm

Features :

1. High efficiency solar panel
2. Guaranteed power output
3. Strictly quality control
4. Excellent performance in harsh weather
5. Waterproof
6. Life span up to 25 years
7. Low degradation
8. Power output warranty: 5 year-95% 10 year-90% 25 year-80%
9. Recycling aluminum frame 1 pcs 20A MPPT solar charge controller

Features :
Increases charge efficiency by 20% – 43% High technology MPPT with LCD display, efficiency > 98%

Employs a DC converting circuit, conversion efficiency > 96%

MPPT demo displays the efficiency of this controller compared to PCM models Functions as a power meter

LCD display shows the battery voltage, charging current, charging power, output status,

output mode, time and accumulated power saving

Suitable for a wide range of batteries

Maximum charge and discharge current 20A

Five output modes: Manual,Standard,Timer,Light sensor,Light sensor on + Timer off.

Built in timer, suitable for a periodic discharge system such as solar street lights, solar pumps etc.

Over charge, over discharge, overload and short circuit protection

3-stage charging algorithm, impulse, bulk and float

Fully Aluminium housing incorporating a large heat sink

Low stand-by power consumption

4 x Solar Panel Mounting Brackets Fitting

There are FOUR to a set, Z style

Perfect for most framed solar panels,these brackets can be bolted to the rear of most framed solar panels allowing the solar panel to be easily attached to a flat surface. Ideal for caravans,campervans,motorhomes,boat…ect. 1 PCS MC4 with 5meter 4mm⊃2; extension solar cable(red and black)

Solar cable anti UV for outdoor use

2 Pair Y MC4 for solar panel series string which with 3 male and 3 female of MC4 connector, esay to series the solar string
